Starling Nest Box with Camera
Gardenature bird box cameras are easy to set up and can provide hours of educational fun for all age groups.

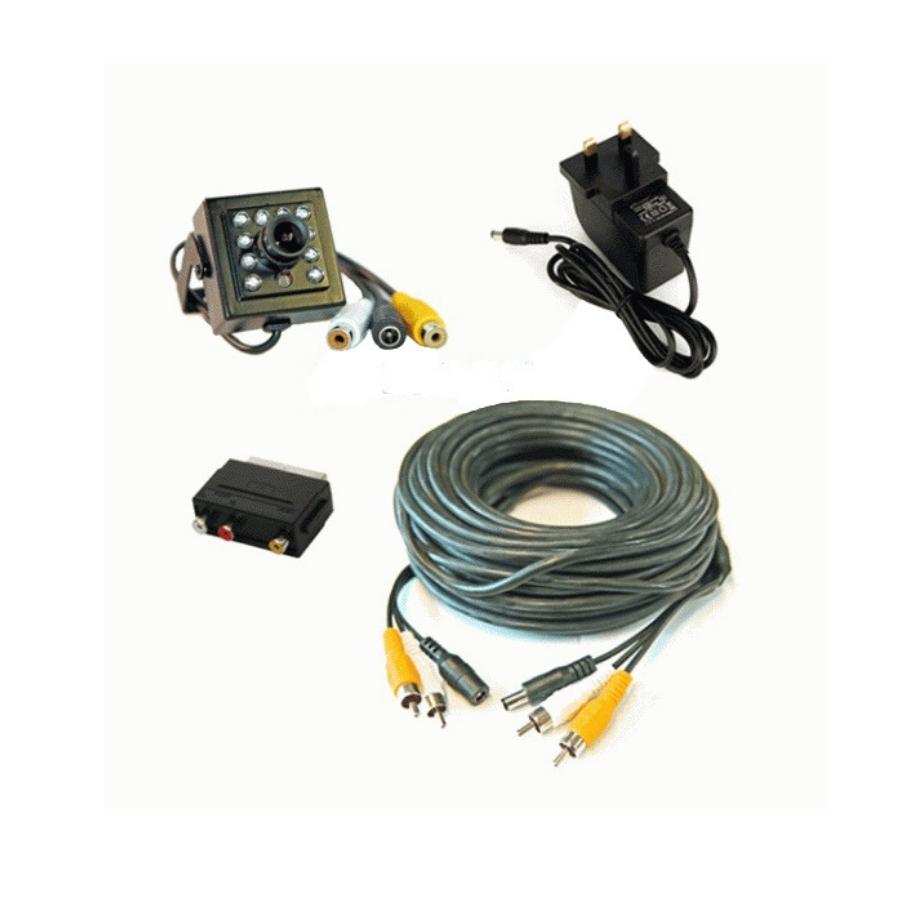

Starling Box Camera Kit Contains:
- Hand made 21mm Western Red Cedar (PEFC certified) Starling nesting box
- Ultra High resolution Sony Effio 700 TVL (TV Line) CCD colour camera with light sensing infrared illumination enabling 24hr viewing.
- Integral microphone
- User adjustable focus lens (pre-set)
- Weatherproof 3 core cable for bird box TV. (Select Cable Length in the drop down box above)
- Regulated 100-240v AC / 12volt DC mains adaptor plug (Indoor use)
- TV Scart plug (RCA Yellow / White) optional TV input
- Nest box fixing screws
- Instruction sheet with useful tips to help maximise on nesting in your bird box
- 2 year camera warranty

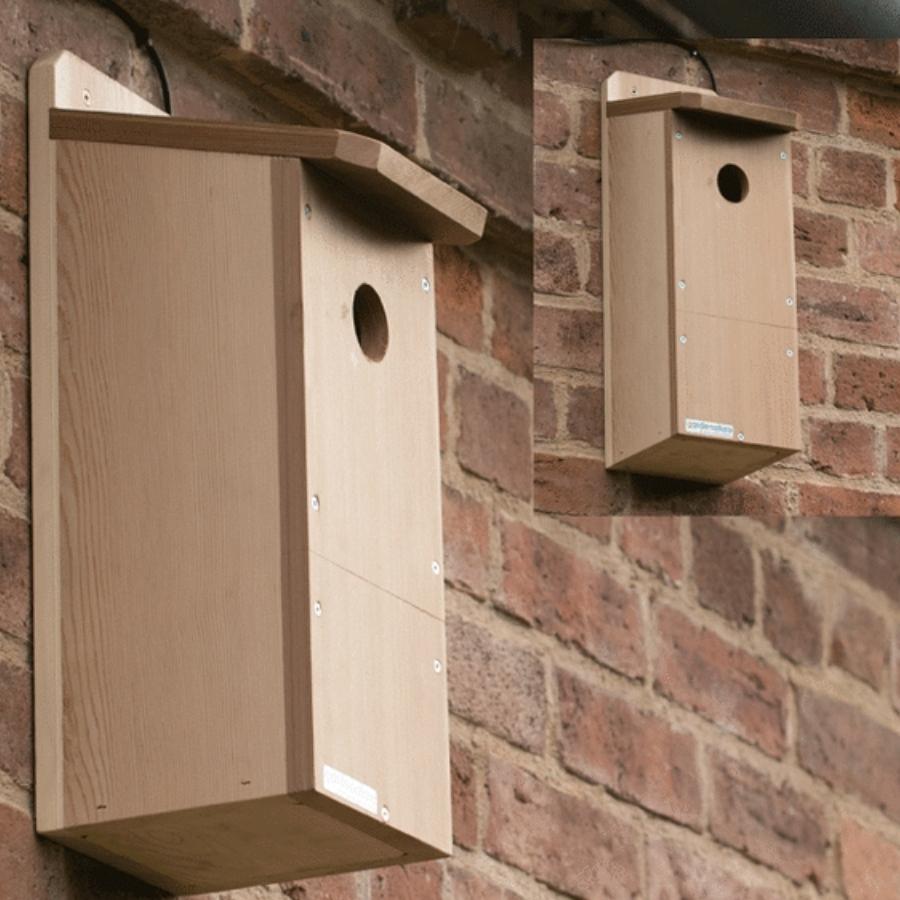

The Starling Nest Box
Our Starling nest box offers market leading quality, durability and great value for money. Handmade in our UK workshops from high grade 21mm PEFC Western Red Cedar (responsibly sourced) this starling box design follows guidelines suggested by the RSPB. The nestbox hole is 45mm, there are 4 drain holes in the bird box floor. The front and top panels are screwed for ease of cleaning out which is recommended to be in the months of September and October. A quick release mounting bracket holds the camera in the optimum position, this also allows for ease of camera transfer between other gardenature nest boxes and viewcam feeder products if required. This starling bird box with camera offers you a top down view of the nesting chamber, so you will be right there in the nest getting to know the chicks!

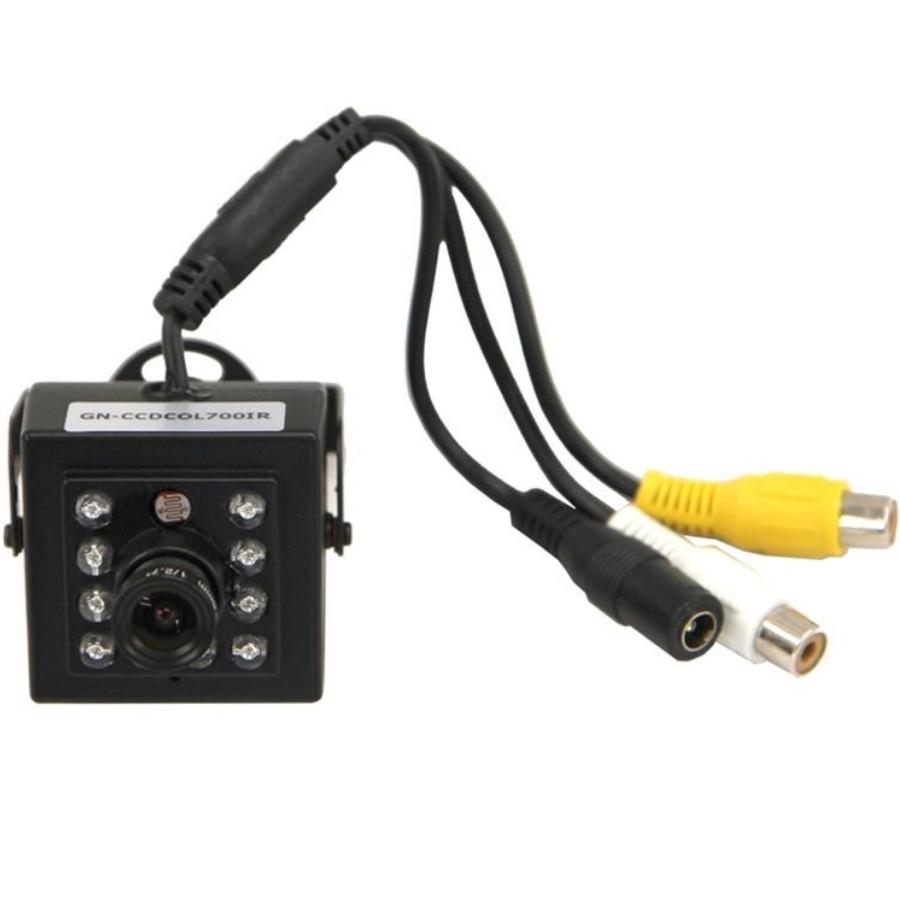

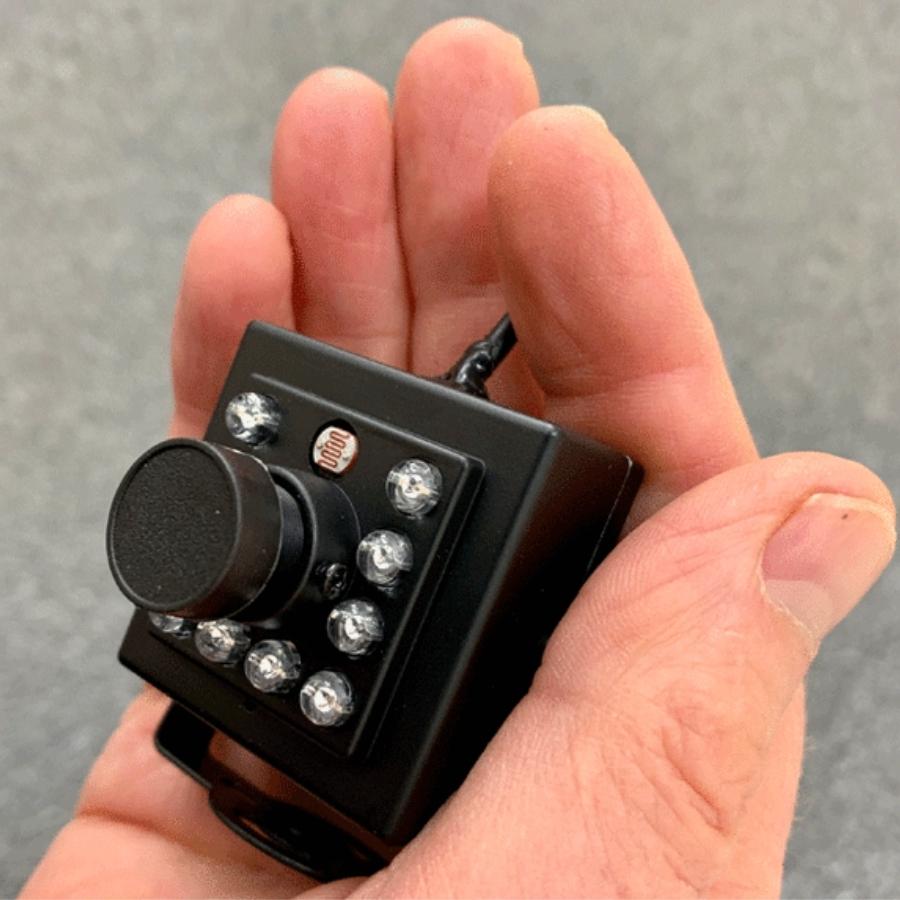

This Sony EFFIO CCD Ultra High Resolution 700TVL (TV Line) Camera has been designed specifically for use with Gardenature camera nest boxes and feeder camera kits. This truly outstanding bird box camera uses an intelligent Sony Effio DSP Chip which operates with a Super Light Sensor to cleverly adjust the image quality to suit its environment. Not only this, the light sensor also serves to adjust the x10 infrared night vision LEDs to a graduating on/off, gently supplementing loss or gain of natural light levels with an invisible IR. The result of this outstanding technology is that we can now produce ultra high resolution colour images in full light of day and sharp black and white images at night or low light level conditions. This mini nest box camera also incorporates a highly sensitive microphone so you can hear as well as see what's going on. The camera has a 3.6mm lens which produces a 92 degree viewing angle, the perfect setup for a nest box. The lens will have already been pre-focused to the correct position for you, but it can very easily be adjusted to suit alternative applications.
The Rest of the System
A professional x3 core cable (Audio/Video/12vDC) is already connected to the camera in the roof of the nest box, the other end of the cable needs to be routed into your property. The cable plugs are black, yellow and white. The black is for mains power and connects to the (supplied)12V DC power adaptor / plug. The remaining RCA yellow (video) and white (audio) connectors can either plug into a spare AV/AUX socket on your TV, / DVD recorder, or a spare TV scart input using the (supplied) scart adaptor. Switch on at the mains plug, then select the appropriate AV channel on your TV, sit back and wait for the show to start! All very easy but if you need any help we are just a phone call away.
|Audio:||Highly Sensitive Microphone built in|
|Camera_Dimension:||42 x 42mm (metal)|
|Camera_Sensor:||Sony Effio 1/3" CCD COLOUR|
|Effective_Pixels:||752 (h) x 582 (v)|
|Infrared_LED:||x10 by Switching Sensor|
|Min Illumination:||0.0 Lux (f1.4)|
|Nest box Dimensions:||H490 x W170 x D187mm|
|Nest_Box_Material:||Western Red Cedar|
|Operating_temperature:||-20C > +50C|
|Select Cable Length:||10, 30 or 50 Meters|
|Shutter_Speed:||1/50 - 1/100|
